A totally new and revolutionary concept in composite panel manufacturing.
- A fully mechanically fixed system.
- Lightweight construction.
- Wind and blast resistant.
EXTERNAL
Non load-bearing stainless steel panels will replace conventional heavy steel plate cladding. No need for added insulation or decorative liners.
INTERNAL
Non load-bearing decorative panels will replace conventional steel plate bulkheads with added insulation and decorative liners. Typically for use around Galley’s, Laundry’s and Plant Rooms.
- Notes
- BD Systems Panels are supplied with all the connecting profiles designed to meet project specific requirements.
- Manufacturer
| Description | Fire Class | Standard Width (mm) | Panel Height (Up to/mm) | Module Width (mm) | Thickness (mm) | Weight (Kg/m2) | Sound Reduction (dB) | Thermal Insulation (W/m2 K) | Application |
|---|---|---|---|---|---|---|---|---|---|
| BD HD100 | A60 | 1200 | 6000 | 300 to 1200 | 100 | 32 | 40 | 0.32 | Cladding / Partition |
Details

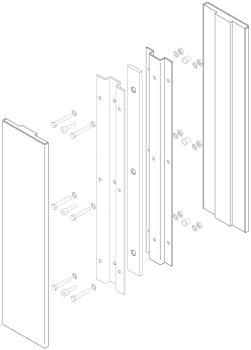

Joint Assembly
Panel Joint Detail
Standard Corner Detail
External Head Detail
External Base Detail
